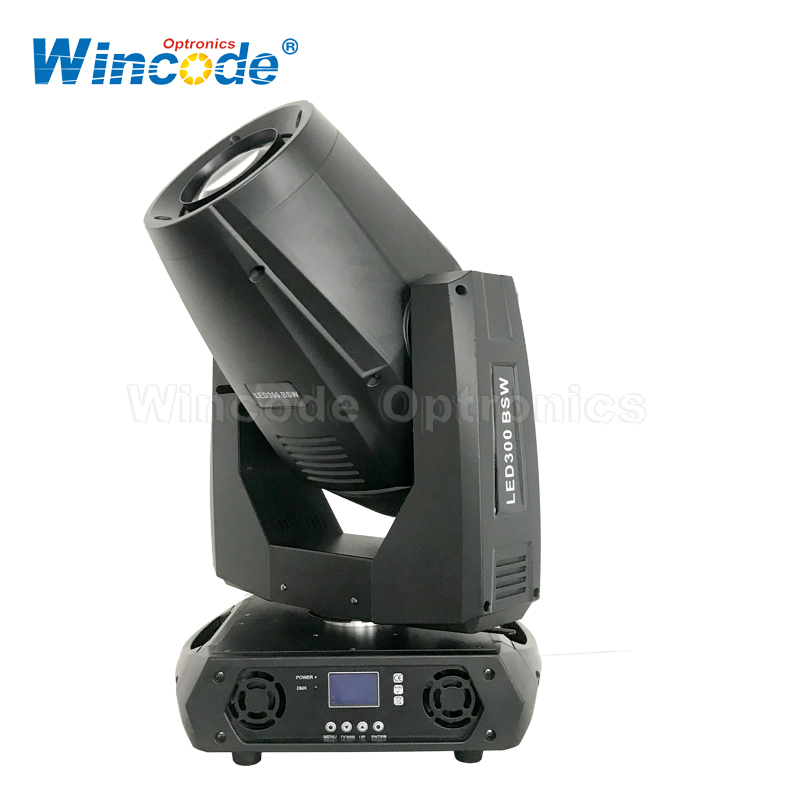

WOP-LM1013B 300W LED Hybrid Moving Head Light With CMY CTO

Product introduction:

WOP-LM1013B 300W Hybrid Moving Head Light with CMY+CTO. 1pc 300W Cool white LED SOURCE 8-38°with large range zoom. Pan& Tilt

three phase motor response fastly and smoothly. With 11 fixed gobos and 7 rotated gobos, 10 colors with linear CMY and CTO, 3-face prism,

frost, iris. It’s the ideal choice for the stage lighting designers. DMX512, RDM support.

Product advantages:

​

Product parameters:

Optic

- LED: 1 x 300W Cool White LED

- High efficiency optical system, delivering extremely powerful output

- High quality dichroic lenses

- Beam angle: 8- 38°

- Average lifetime: ≥100,000H

- CRI: ≥90

Pan & tilt movement angle

- Pan scanning: 540° 16bit precision movement

- Tilt scanning: 270° 16bit precision movement

- Automatic Pan/Tilt correction

Effect

- Fast electric strobe 1~25 Hz

- 0~100% smooth dimming, independent shutter and various strobe effect

- Gobo wheel: rotating gobo wheel 7 gobos+1 open

- Fixing gobo wheel: 11 gobo+1 open

- With Animation wheel, prism and frost

- Colours:10 colors+1 open Rainbow effect in both directions

- CMY mocros,CTO calibration system

Control and Program

- Protocal: DMX512,RDM

- Data connector: 3PIN/5PIN XLR DMX input/outpiut

- Display: Blue LCD Display

Software

- Software updated: via DMX to update software, more convenient and faster.

- Humanized display mode, press the "UP" key under the DMX interface can quickly make the display 180 ° reverse

Structure

- Aluminium alloy + Plastic shell

Power consumption

- Voltage: AC 100V~240V 50/60Hz

- Rated power: 450W

Other

- IP rating: IP 30

- Work environment: -5℃~45℃

Size and weight

- Size: 408mm x 293mm x 655mm

- N.W: 21 kg

Applications Scenes:

Stage,Tour Show,Disco, Events, Concerts, Theater etc.

HIGH QUALITY:

Production according to ISO9001:2008 quality system UL,CE and ROHS authentication.

OUR SERVICE:

Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM, manufacturing.
6. 6. Lighting scheme design, 3D rendering for your projects.

OUR ADVANTAGE:

-Over 10 years experiencesskillful workers assemble according to UL CE standard.

-Highquality meet different market, CE RoHs, UL, TUV...

-All products QC checked before package.

-Products improved from the public mold.

-Products can be customized, Hardware and software can be customized.
