    UPS Programmable LED DMX 512 Lighting Controller

    Ask Lasest Price
    Brand Name : Wincode Optronics
    Model Number : WOP-KA8
    Price : negotiation
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000pcs/month
    Delivery Time : 3-5 working days after received your payment
    Certification : CE/ROHS
    • Product Details
    • Company Profile

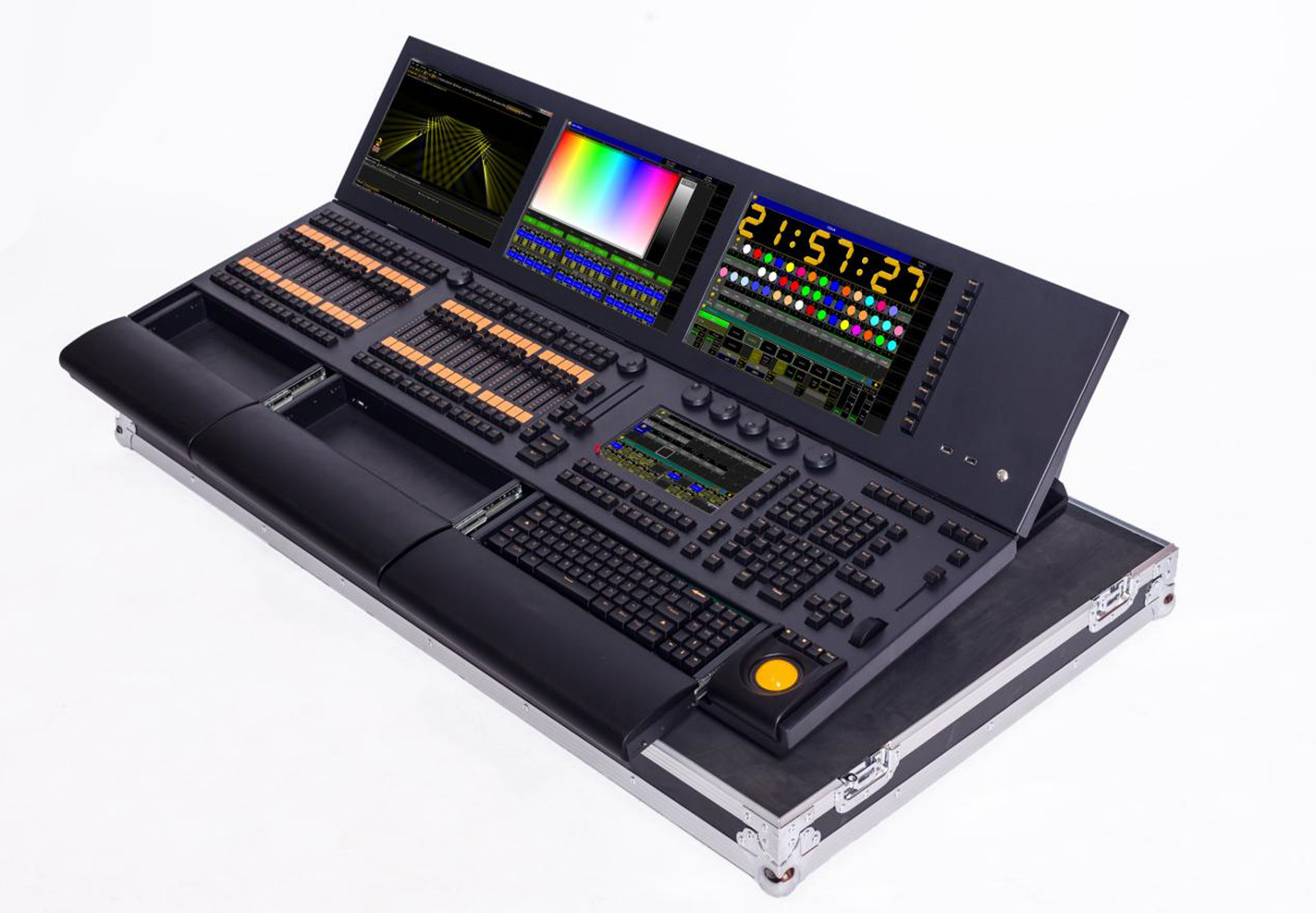

    UPS Programmable LED DMX 512 Lighting Controller

    Programmable DMX 512 Lighting Controller for LED Ligthts


    Brief Features:


    • Built-in 6 DMX-512 output interfaces, 1 DMX-512 input interface, the maximum expansion can be 256DMX output port.


    • Support physical buttons to close the window and run other lighting software


    • Support Art-net network expansion to 256 domains, all signals can be output without NPU


    • ASUS motherboard, Intel Core i3 6100CPU, 4G memory, SSD Kingston 120g, Gigabyte GTX1030 alone


    • A highly sensitive trackball


    Tech Parameters:


    MotherboardASUS motherboard
    CPUIntel core i3 6100 CPU
    Memory4G memory, Gigabyte GTX1030 alone
    SD cardKingston 120g
    Screen

    1 of 9-inch touch screen

    3 of 15.4-inch electric lifting widescreen touch screens

    MouseDisplay window fixed mouse cannot be dragged
    Buttons Operation

    Support physical buttons to close the window and run other lighting

    software

    USB interfaces1 of audio interface, 1 of network interface, 2 of work light interfaces
    Wheels & Faders

    1 master dimming wheel, 4 attribute encoding wheels, 1 master fader, 2

    AB faders

    Keyboard DrawerBuilt-in keyboard drawer
    Trackball1 highly sensitive trackball
    Network Expansion

    Support Art-net network expansion to 256 domains, all signals can be

    output without NPU

    Display1 external HDMI display
    DMX-512 Interfaces

    Built-in 6 DMX-512 output interfaces, 1 DMX-512 input interface, the

    maximum expansion can be 256DMX output port.

    Time Code Interfaces1 LTC time code input interface, 1 MIDI time code input interface.
    Light On /Off

    X1-X20 User1 and User2 button LEDs on the 9-inch screen can be

    illuminated in synchronization with the program

    Input voltage

    110V ~ 220V 50 ~ 60Hz, built-in high-power UPS uninterruptible power

    supply

    Product weight90KG
    Packaging size137cm * 32cm * 85cm (length, width, height)
